Lingka 2.0L

Category: Light and Medium Card

Total weight: 4.12–4.33 tons Built upon Qianjiang’s robust systems for technology, quality, supply, and manufacturing—adhering to the same design standards, quality benchmarks, supply chain, and production lines—these vehicles are meticulously crafted to meet China’s unique geographical conditions and operational environments, delivering exceptional value and performance tailored specifically for Chinese users. Through forward‑development, the vehicle and chassis exhibit an outstanding sense of cohesion and integration. With an 80% in-house component self‑manufacturing rate, 100% in‑house production of core components, and a relentless commitment to 100% independently designed solutions, these vehicles achieve superior fit and finish while enhancing overall vehicle harmony and integration. A quality assurance pyramid underpins every aspect of vehicle construction, providing all‑round, multi‑angle protection for vehicle integrity. Qianjiang’s mature, proprietary commercial vehicle quality assurance system is rooted in real-world user scenarios, embodying a pragmatic and reliable approach to vehicle manufacturing. From structural design to performance optimization and then to scenario‑specific development, the process seamlessly transitions from durability simulations and bench testing to road trials and extreme‑condition testing—and from individual parts and assemblies through to complete vehicle validation—all while maintaining rigorous, end‑to‑end quality control across every stage. This multi‑dimensional approach ensures uncompromising vehicle quality. Qianjiang sets the benchmark for high‑end commercial vehicle quality. The Qianjiang Lingka continues to uphold Qianjiang’s renowned reputation for high‑end commercial vehicles, delivering exceptional qualities such as reliability, durability, fuel efficiency, and high performance.

Product Inquiry Contact Us

Product Introduction

Project	Single-row厢式 narrow-body standard version (4×2)	Double-row sideboard narrow-body version (4×2)	General / Customized for Foreign Trade
Brand and Model	Qingling Isuzu Lingka 2.0L (ISUZU Lingka 2.0L)	Qingling Isuzu Lingka 2.0L (ISUZU Lingka 2.0L)	Diesel; front-engine, rear-wheel drive; flatbed / box van / cargo grille / refrigerated; China VIb / Euro V / Euro VI customization
Announced Model	QL5040XXYMFHA	QL1040MFHA	Exports to Southeast Asia / the Middle East / Africa / South America / Eastern Europe
Drive Type	4×2 Front‑wheel drive, rear‑wheel drive	4×2 Front‑wheel drive, rear‑wheel drive	Single rear wheel, blue license plate compliant (total mass ≤ 4.5 tons)
Wheelbase	3360 mm (standard) / 2800 mm (short wheelbase)	3360mm	The short wheelbase offers a small turning radius, making it ideal for urban delivery; the standard wheelbase strikes a balance between cargo capacity and versatility.
Vehicle overall dimensions (length × width × height)	5995×2100×2300mm	5995×2100×2300mm	Total length ≤ 6 m, narrow-body cab at 1695 mm—no worries when parking in underground garages or navigating narrow alleyways!
Cargo container dimensions (length × width × height)	4200×1850×1810mm (van-type, approximately 14 cubic meters)	3200×1850×400mm (side panels)	Optional cargo boxes, tarpaulins, sealed compartments, and refrigeration units are available; the capacity is ideally suited for express delivery, department stores, and fresh produce.

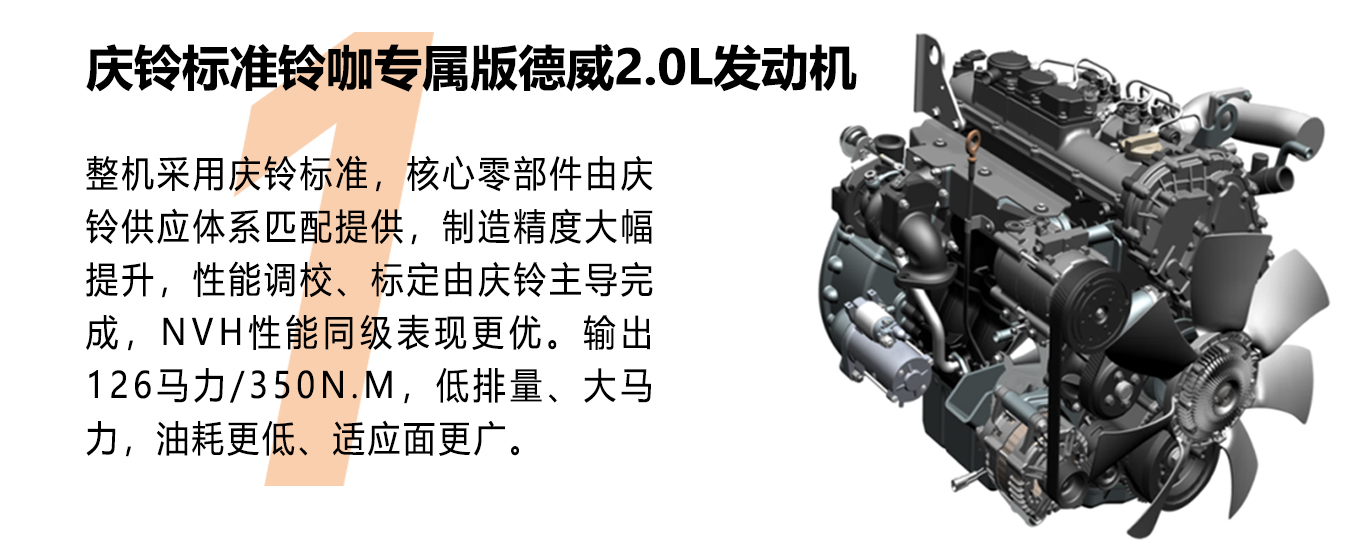

Engine Model	Yunnei Power D20TCIF11 (DeWei 2.0 Exclusive Version, Qianling Calibration)	Yunnei Power D20TCIF11	4-cylinder inline, China VI emissions compliant; Euro V/Euro VI customizable.
Displacement	2.0L	2.0L	Lightweight and small displacement, with fuel consumption 8%+ lower than comparable models.
Maximum Power	93 kW (126 hp) at 3,600 rpm	93 kW (126 hp) at 3,600 rpm	Low RPM, high torque—powerful acceleration and hill climbing.
Maximum torque	350 N·m at 1600–2400 rpm	350 N·m at 1600–2400 rpm	The city’s frequent starts and stops are effortless.
Gearbox	Isuzu MSB 5-speed manual (all-aluminum housing, optimized gear ratios)	Same as left	Smooth shifting, high transmission efficiency, and low maintenance costs.
Rear axle ratio	5.375 (standard); optional 4.875/6.142	Same as left	Choose a lower gear ratio for highways in flat areas, and a higher gear ratio for heavy loads in mountainous regions.
Curb weight	2620kg	2690kg	Blue license compliant, lightweight design for more cargo capacity.
Total mass	4495kg	4495kg	Rated payload of approximately 1.7 tons—no problem getting it road‑legal!
Fuel tank capacity	70L (standard); 100L optional	Same as left	Combined fuel consumption: 8.5–9.5 L/100 km; with a 100L fuel tank, the range exceeds 1,000 km.
Tire specifications	7.00R16LT 8PR Heavy-Duty Tubeless Tire	Same as left	Wear-resistant and suitable for mixed urban and rural road conditions.
Braking System	Front disc, rear drum + ABS + EBD	Same as left	Optional air brakes for stable braking.

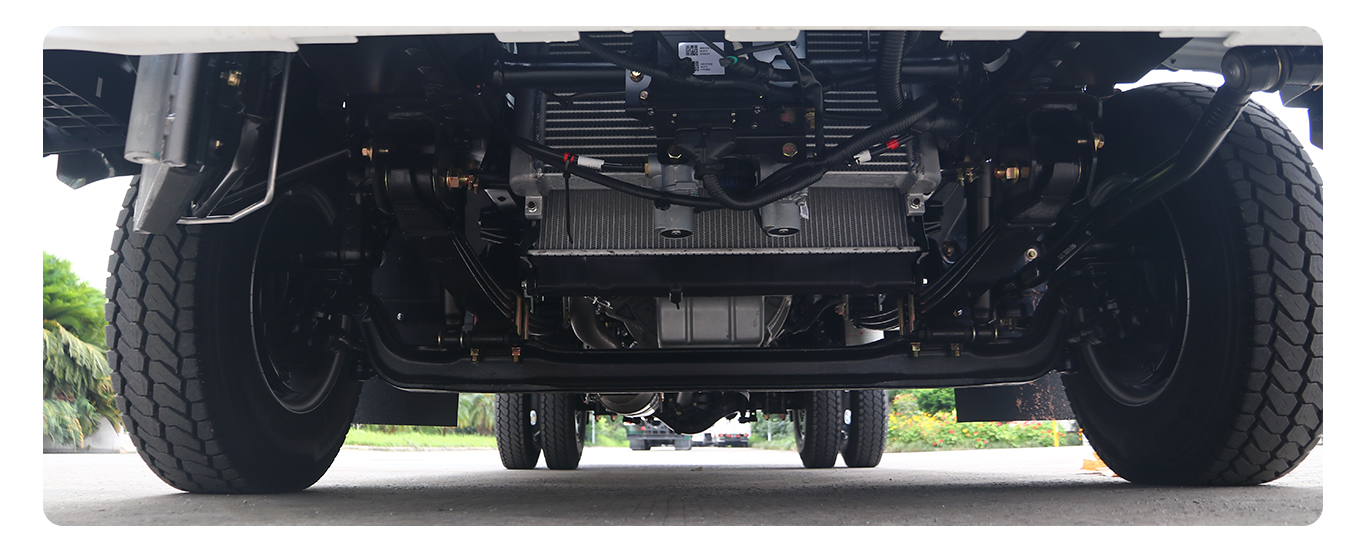

Hanging	3 leaf springs in the front, and 3+2 leaf springs in the rear.	Same as left	Balancing load capacity and comfort, the P series features a mature chassis with a parts commonality rate of over 98%.

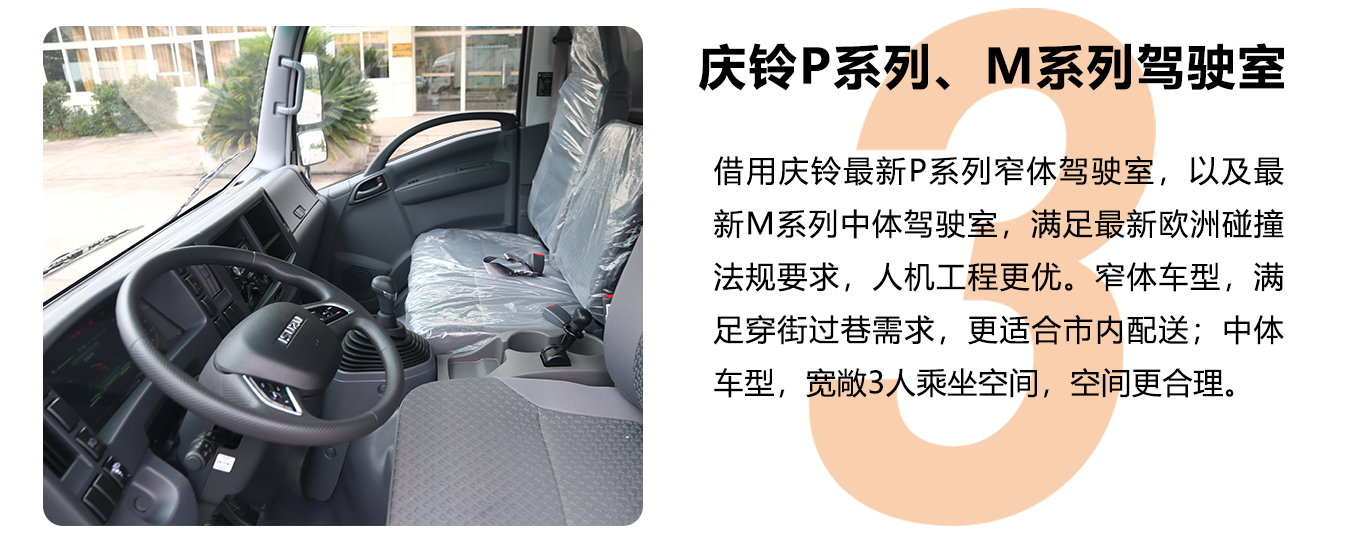

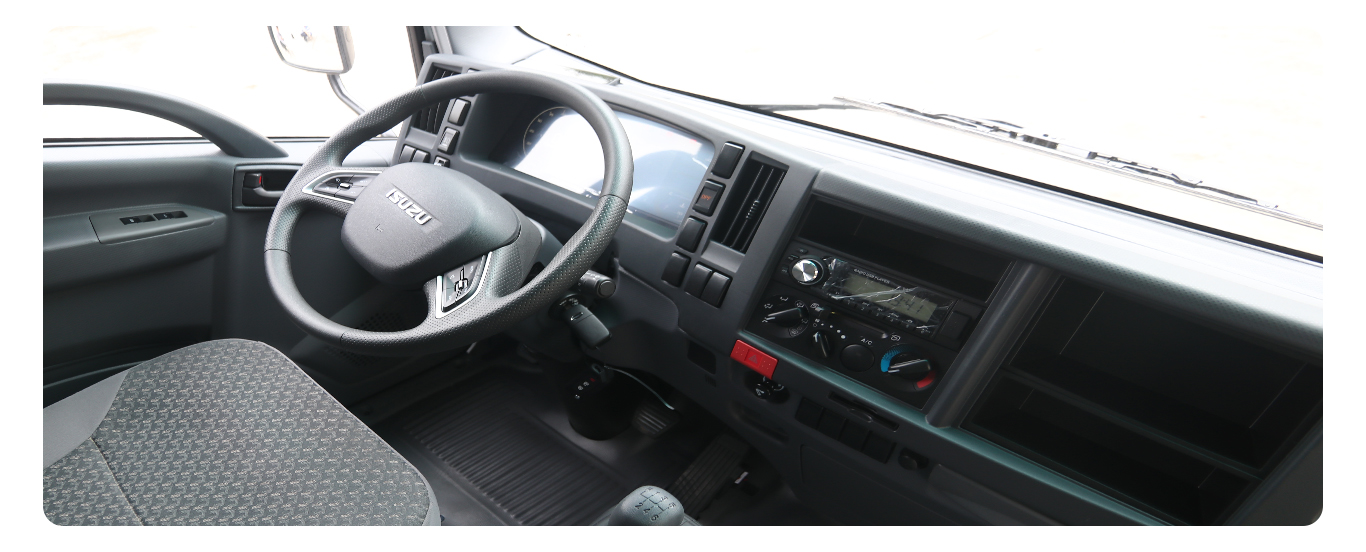

Cab	Single row, 3 seats; narrow body, 1695mm.	Two rows of 5 seats, narrow body 1695mm	Standard features include dual-zone automatic climate control, power windows, and central locking; optional features include a rearview camera and a large display screen.
