KV100

More Environmentally Friendly Qingling’s China VI vehicles deliver low emissions and fuel consumption throughout their entire lifecycle, while simultaneously enhancing overall vehicle performance—resulting in lower noise levels, reduced vibration, and a quieter, more comfortable driving experience. More Economical (Fuel‑Efficient and Urea‑Saving) With ultra‑low fuel consumption, these vehicles offer fuel savings of over 10%–15% compared to domestically produced trucks with the same payload capacity. The urea injection system is precisely calibrated for high accuracy, reducing user costs and making modifications easier for customers. Additionally, they boast high reliability and low maintenance expenses. Greater Fuel Compatibility Taking into account China’s diverse fuel quality and varying user conditions, Qingling has developed its China VI models with optimized compatibility, significantly improving their ability to operate effectively on a wide range of fuel types—allowing Qingling’s China VI vehicles to “eat even the coarser grains.” Higher Cost‑Effectiveness While similar China VI models in China have seen price increases ranging from 10% to 20% or more compared to their China V counterparts, Qingling’s price increase has been only a modest 3%–4%.

Product Inquiry Contact Us

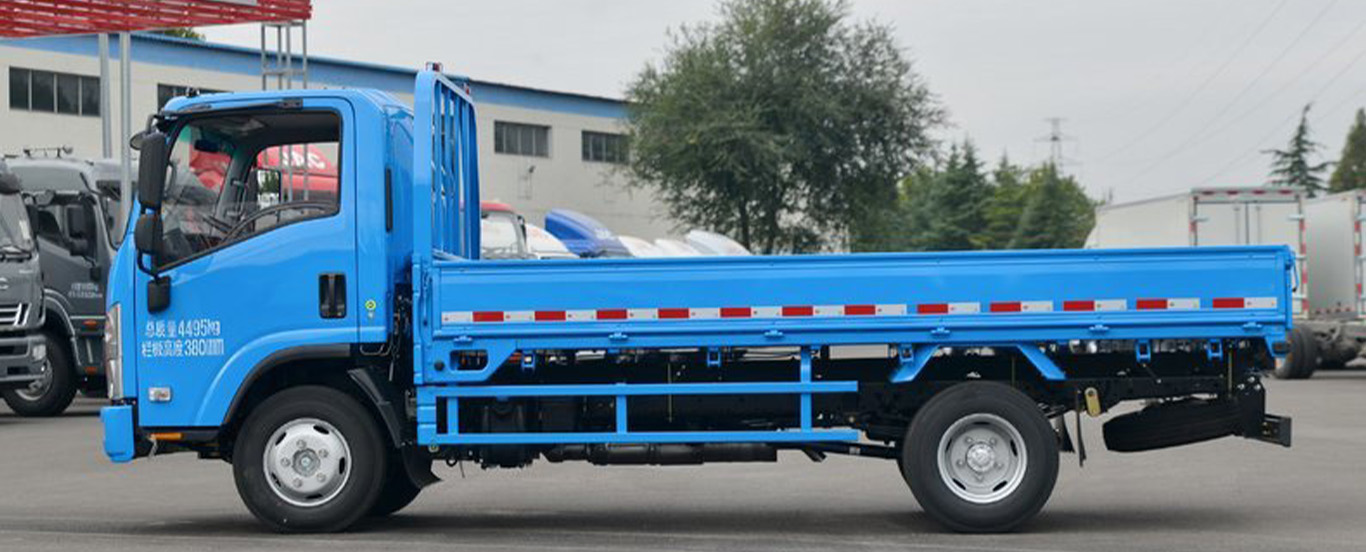

Product Introduction

Total weight: 3.85–8.28 tons

Project	Single-row standard version (4×2)	Double-row standard version (4×2)	Single-row long-axle version (4×2)	General / Foreign Trade Configuration
Brand and Model	Qingling Isuzu ISUZU KV100 Light Truck	Qingling Isuzu ISUZU KV100 Light Truck	Qingling Isuzu ISUZU KV100 Light Truck	Blue plate / Yellow plate; Diesel; Rear-wheel drive; Flatbed / Box van / Stake bed / Refrigerated
Announced Model	QL1044AMHA	QL1044AMHW	QL1044AMHC	Exports to Southeast Asia / Africa / the Middle East / South America
Drive Type	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Rear single wheel / Rear dual wheels available
Wheelbase	3360mm	3360mm	3815mm	Short axis is flexible; long axis is heavy‑duty.
Vehicle overall dimensions (length × width × height)	5995×2180×3150mm	5995×2180×3150mm	6495×2180×3150mm	Blue Plate Compliance (≤6m)
Cargo container dimensions	4205×2100×400mm	3240×2100×400mm	4750×2100×400mm	Optional cargo box, gantry frame, tarpaulin, or sealed container.

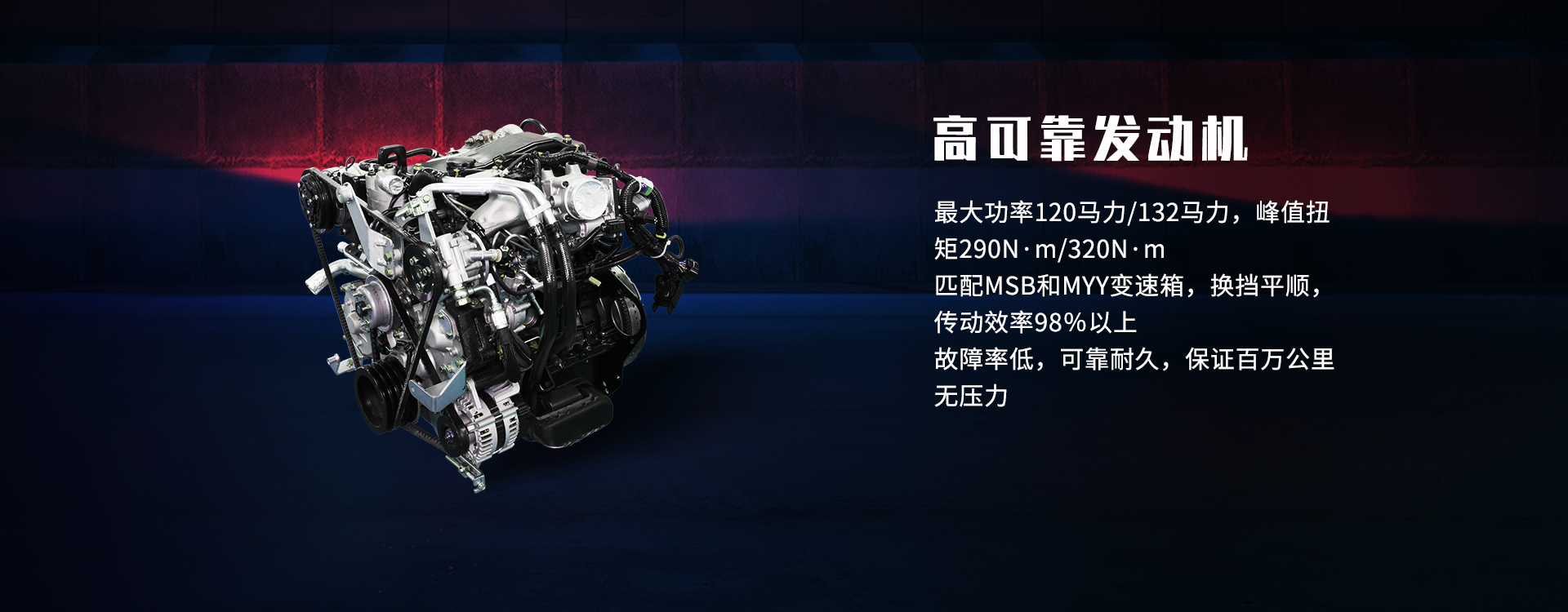

Engine Model	4KB1-TCG60 (2.5L) / 4KH1CN5MD (3.0L)	Same as left	Same as left	Isuzu’s classic model, the B10, boasts a long service life.
Displacement	2.499L / 2.999L	Same as left	Same as left	China V / China VIb / Euro V / Euro VI (Customized)
Maximum power	96 kW (131 hp) at 3,600 rpm / 85 kW (115 hp) at 3,400 rpm	Same as left	Same as left	The 4KB1 version boasts even more powerful performance.
Maximum torque	360 N·m at 1300–2600 rpm / 280 N·m at 1600–2400 rpm	Same as left	Same as left	Low RPM, high torque—powerful in heavy-load starts!
Gearbox	MYY-6MT (6-speed manual, standard) / MSB-5MT	MYY-6MT / MSB-5MT	MYY-6MT / MSB-5MT	All-aluminum alloy housing, full synchronizer, high transmission efficiency.
Rear axle ratio	5.571 (standard) / 4.33 / 4.875	Same as left	Same as left	Adapts to various operating conditions in high‑speed, plain, and mountainous terrains.
Curb weight	2805kg	2900kg	2950kg
Total mass	4495kg	4495kg	4495kg
Rated load	1495–1650 kg	1350–1500 kg	1550–1700 kg	Compliant payload; blue‑plate C1 vehicles are permitted to drive.
Fuel tank capacity	76L (optional 100L)	76L	76L	Combined fuel consumption: 8–9 L/100 km; range: 900 km+

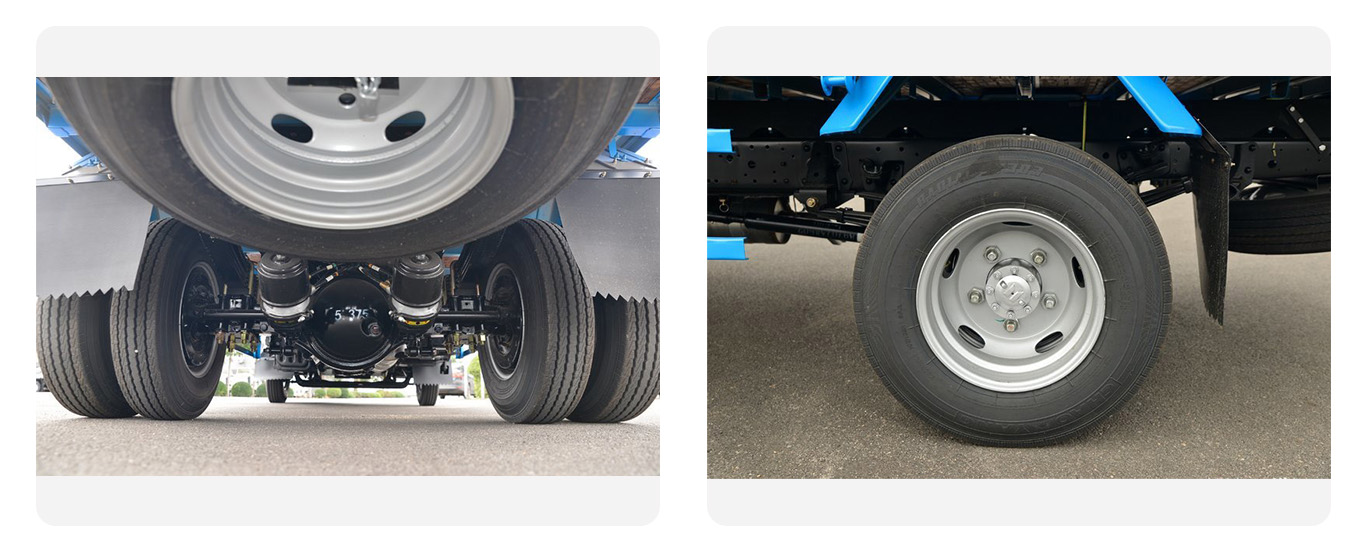

Tire specifications	7.00R16 / 7.50R16	Same as left	Same as left	Heavy-duty / Wear‑resistant optional
Minimum ground clearance	180mm	180mm	180mm	Good road passability on urban/rural roads.
Braking System	Front disc, rear drum + ABS + EBD	Same as left	Same as left	Optional air brake / air‑cut brake (heavy‑duty version)
Hanging	Front leaf springs, rear multi-leaf springs	Same as left	Same as left	Heavy-duty and highly durable.

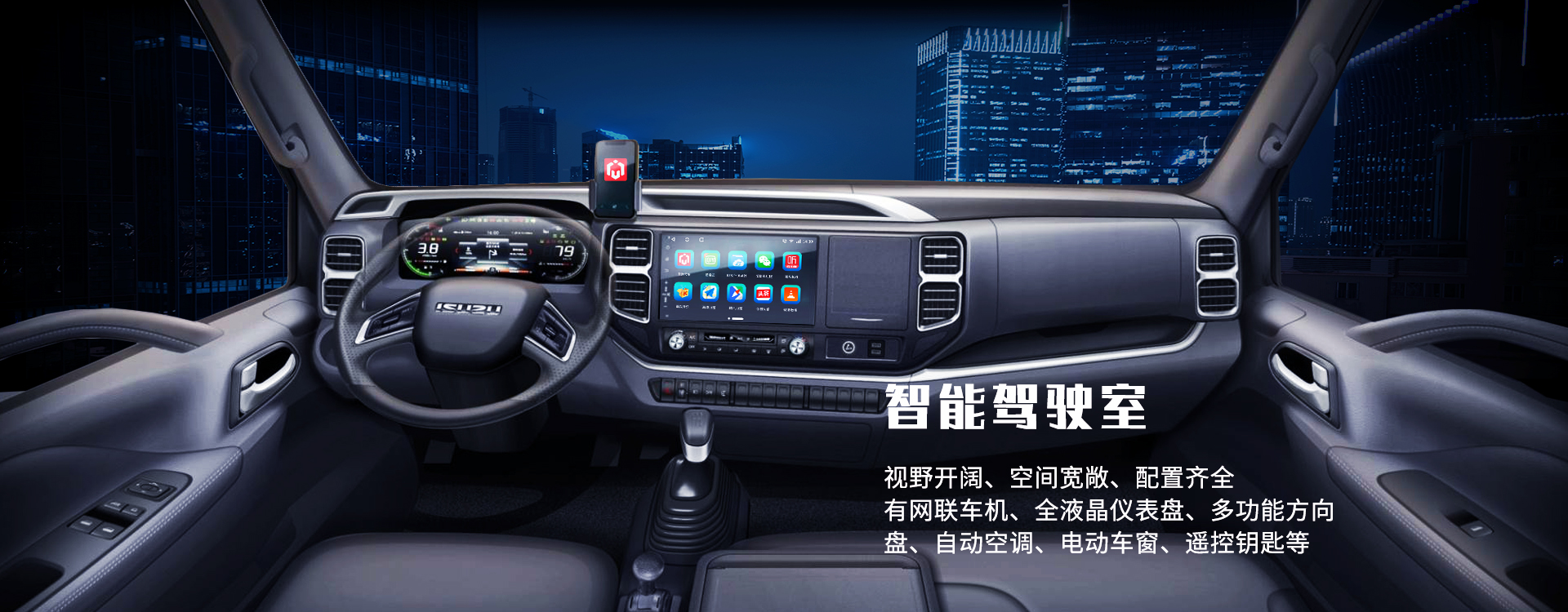

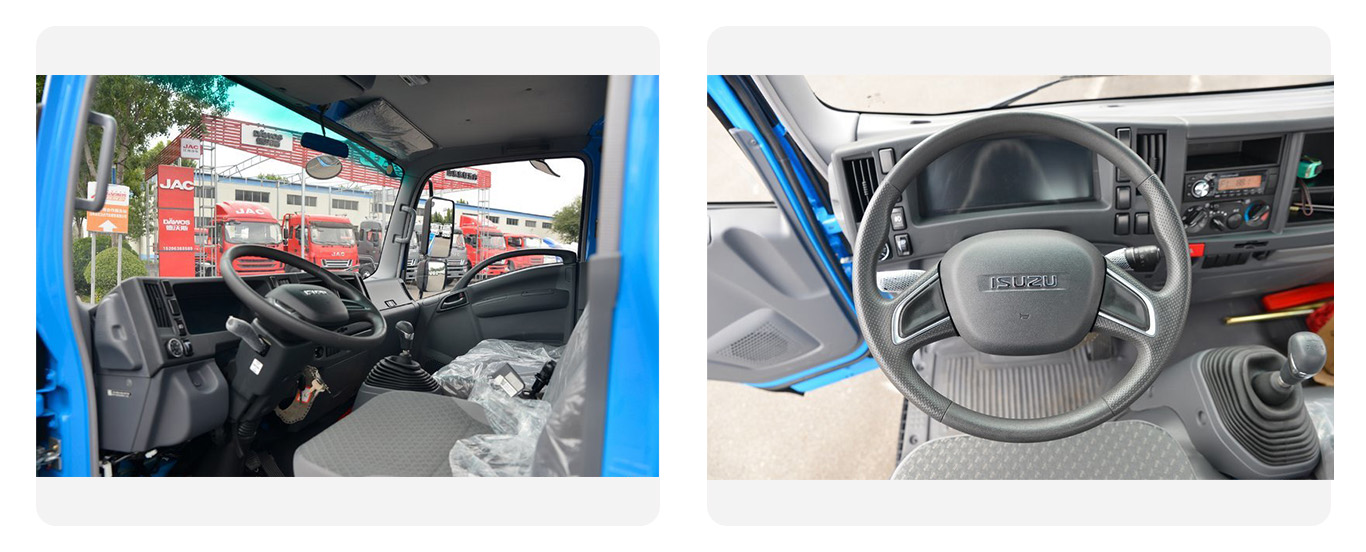

Cab	Single row, 3 seats	Double-row 5-seater	Single row, 3 seats	Standard features include hot and cold air conditioning, a radio, and USB connectivity; optional features include a multi‑function steering wheel and a large central control screen.
