700P

Total weight: 8.1–11.4 tons Powerful performance, strong vehicle load capacity, and high cruising speed. Low fuel consumption—especially in an era of soaring oil prices, where ultra‑low operating costs become even more prominent. Long service life, reliable and durable, with extremely low maintenance costs. High safety standards, equipped with a unique collision energy‑absorbing safety system. Comfortable, offering a ride experience comparable to that of a business class cabin. Low total lifecycle cost, creating greater value for customers.

Product Inquiry Contact Us

Product Introduction

Project	Single-row van standard version (4×2, yellow license plate)	Single-row sideboard heavy-duty version (4×2, yellow plate)	Single-row long‑axis version (4×2, yellow license plate)	General / Customized for Foreign Trade
Brand and Model	Qingling Isuzu 700P	Qingling Isuzu 700P	Qingling Isuzu 700P	Diesel; Front-engine, rear-wheel drive; Flatbed / Box van / Cargo grille / Refrigerated / Wrecker / Special-purpose vehicle
Announced Model	QL5100XXY9NHA	QL11009NHA	QL5100XXY9NHA	Exports to Southeast Asia / the Middle East / Africa / South America / Eastern Europe; right-hand drive available.
Drive Type	4×2 Front‑wheel drive, rear‑wheel drive	4×2 Front‑wheel drive, rear‑wheel drive	4×2 Front‑wheel drive, rear‑wheel drive	Rear dual wheels, total mass 9.6–10 tons (yellow license compliant).
Wheelbase	4475mm	4475mm	5200mm	Short axle for flexibility; long axle with a large cargo box.
Vehicle overall dimensions (length × width × height)	7012×2250×3200mm	6008×2150×2900mm	7600×2250×3300mm	Wide cab that balances both off-road capability and load capacity.
Cargo container dimensions (length × width × height)	6672×2250×2203mm (van type, approximately 34 cubic meters)	6008×2150×450mm (side panels)	7000×2300×2300mm (van-type, approximately 37 cubic meters)	Optional refrigeration / wing body / side‑rail cargo box, suitable for fresh produce / express delivery / building materials.

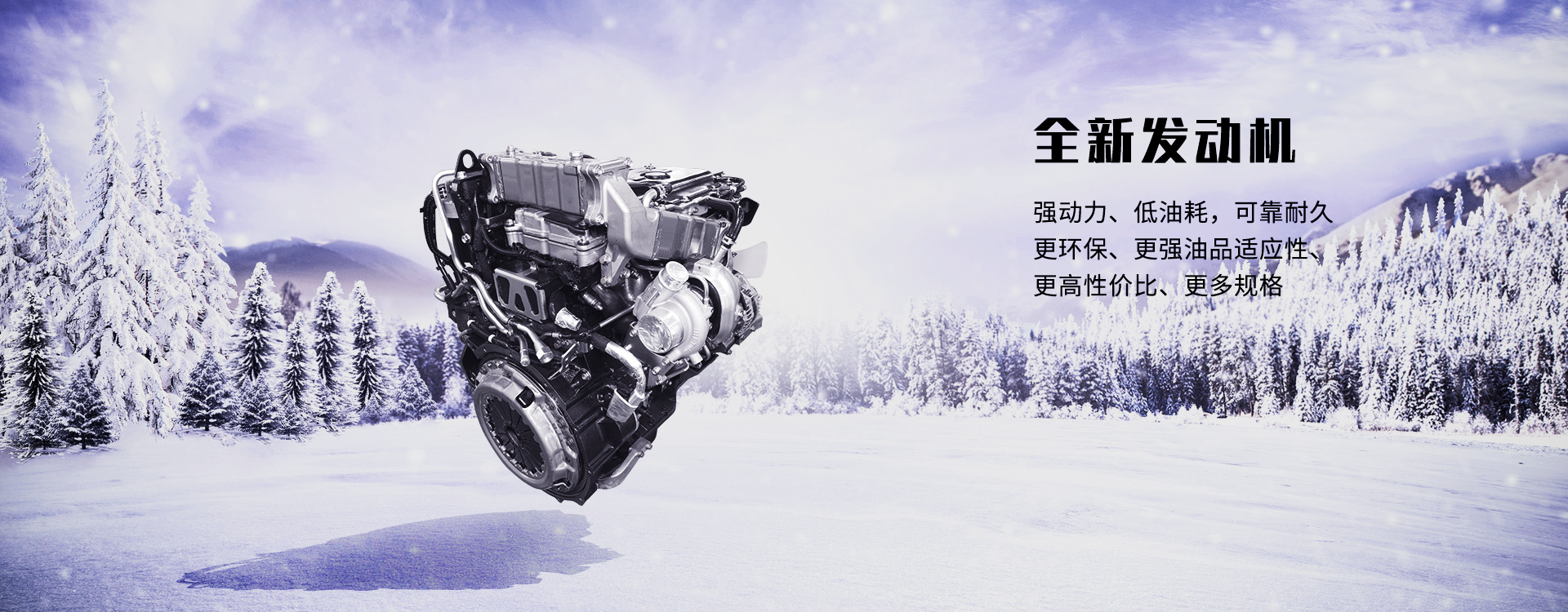

Engine Model	Isuzu 4HK1-TCG61 (China VI) / 4HK1-TCG60 (Euro V)	Same as left	Same as left	4-cylinder in-line, high-pressure common rail, turbocharged with intercooler
Displacement	5.193 L (5.2 L)	Same as left	Same as left	Isuzu’s classic power, universally applicable worldwide.
Maximum power	139 kW (190 hp) at 2,600 rpm	139 kW (190 hp) at 2,600 rpm	139 kW (190 hp) at 2,600 rpm	Low RPM, high torque—powerful for heavy loads and steep climbs.
Maximum torque	507 N·m at 1600–2400 rpm	507 N·m at 1600–2400 rpm	507 N·m at 1600–2400 rpm	At 1500 rpm, it delivers 90% of its torque, offering strong adaptability to various operating conditions.
Gearbox	Isuzu MLD-6Q: 6-speed manual (standard); 6-speed automatic available as an option.	Same as left	Same as left	All-aluminum housing, high transmission efficiency, low maintenance costs.
Rear axle ratio	4.1 (standard); optional 4.33/4.875 ISUZU	4.33 (standard configuration)	4.1	Choose a lower gear ratio for highways in flat areas; select a higher gear ratio for heavy loads in mountainous regions.
Curb weight	4760kg	4500kg	4900kg	Lightweight main beams for compliant, high‑capacity loading.
Total mass	9645kg	9975kg	10000kg	Rated payload: 4.7–5.5 tons; can be driven with a Class B driver’s license.
Fuel tank capacity	150L (standard); 200L optional	Same as left	Same as left	Combined fuel consumption: 17–19 L/100 km, with a range exceeding 800 km.
Tire specifications	235/75R17.5 16PR (Rear Dual Tires)	8.25R20 16PR (Rear Dual Wheels)	235/75R17.5 16PR	Wear‑resistant and durable, ideal for long distances and heavy loads.
Braking System	Front disc, rear drum + ABS + EBD + Automatic Clearance Adjustment	Same as left	Same as left	Braking is stable, making heavy loads safer.
Hanging	8 leaf springs in the front, plus 10+6 steel leaf springs in the rear.	8 leaf springs in the front, plus 12+8 leaf springs in the rear.	8 leaf springs in the front, plus 10+6 steel leaf springs in the rear.	Isuzu’s mature chassis strikes a perfect balance between load-carrying capacity and ride comfort.
Cab	Single-row 3-seater, wide body 1995mm	Single-row 3-seater, wide body 1995mm	Single-row 3-seater, wide body 1995mm	Standard features include dual-zone automatic climate control, power windows, and central locking; optional features include a large touchscreen display, rearview camera, and multi-function steering wheel.
