KV600

Category: Light and Medium Card

More Environmentally Friendly Qingling’s China VI vehicles deliver low emissions and fuel efficiency throughout their entire lifecycle, while simultaneously enhancing overall vehicle performance—resulting in lower noise levels, reduced vibration, and a quieter, more comfortable driving experience. The vehicles fully comply with all requirements of the China VIb emission standards. More Economical (Fuel‑Efficient and Urea‑Savings) With lower fuel consumption, these vehicles offer fuel savings of over 10%–15% compared to domestically produced trucks with the same payload capacity. The urea injection volume is precisely calibrated, reducing user costs and making modifications more convenient for customers. High Reliability and Low Maintenance Costs. Greater Fuel Compatibility Taking into full consideration China’s diverse fuel quality and users’ operating conditions, Qingling has developed its China VI models with optimized compatibility, significantly improving their ability to run on a wide range of fuel types—allowing Qingling’s China VI vehicles to “eat rough” without issue. Higher Cost-Effectiveness While comparable China VI models in the domestic market have seen price increases ranging from 10% to 20% or more over their China V counterparts, Qingling’s price increase has been minimal, at just 3–4%. Stronger Power Output The engines deliver even more robust power, with comprehensive optimizations to both power output and low‑speed torque, resulting in improved full‑load performance and enhanced hill‑climbing capability across the entire vehicle lineup. More Variants Available Qingling has expanded its product lineup to include a wider variety of configurations—such as one-and-a-half sleeper cabs, composite panel box bodies, cage‑style cargo boxes, refrigerated trucks, and insulated vans—giving users more options to choose from based on their specific needs.

Product Inquiry Contact Us

Product Introduction

Total weight: 3.56–8.28 tons

Project	2.5L Double-Row Standard Version (4×2)	3.0L Single-Row Long-Wheelbase Heavy-Duty Version (4×2)	Single-row standard version (4×2)	General / Customized for Foreign Trade
Brand and Model	Qingling Isuzu ISUZU KV600 Light Truck	Qingling Isuzu ISUZU KV600 Light Truck	Qingling Isuzu ISUZU KV600 Light Truck	Diesel; Rear-wheel drive; Flatbed / Box van / Stake bed / Refrigerated / Special-purpose vehicle
Announced Model	QL1043FMHW	QL1096MKKA	QL1043FMHA	Exports to Southeast Asia / Africa / the Middle East / South America / Eastern Europe
Drive Type	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Rear single wheel / Rear dual wheels available
Wheelbase	3360mm	3815mm	3360mm	Short axis is flexible; long axis is heavy‑duty.
Vehicle overall dimensions (length × width × height)	5995×2200×2385mm	6995×2380×2440mm	5995×2200×2385mm	Short-axis blue license compliant (≤6m); long-axis yellow license for heavy loads.
Cargo container dimensions (length × width × height)	3130×2100×400mm	5175×2300×380mm	4200×2100×400mm	Optional cargo box, gantry frame, tarpaulin, sealed compartment, refrigeration unit

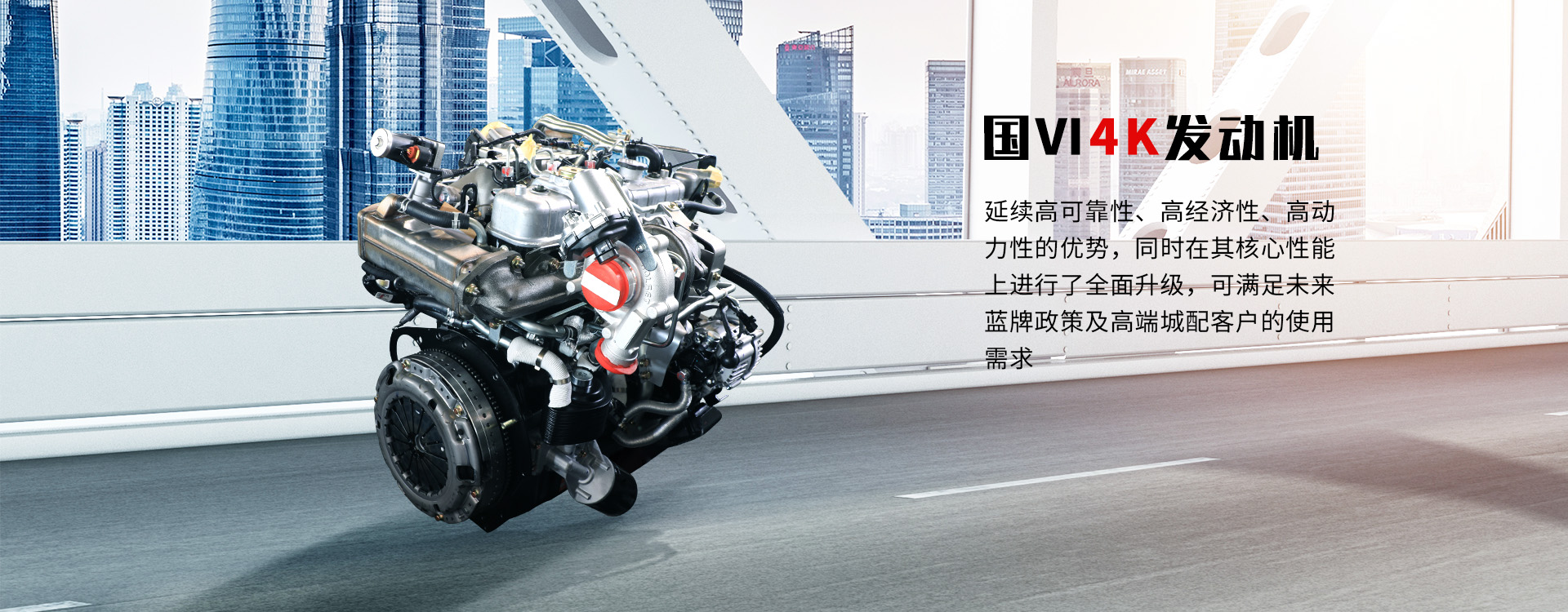

Engine Model	4KK1N6HD (2.5L)	4KH1N6HD (3.0L)	4KK1N6HD (2.5L)	Isuzu’s new-generation powertrain, the B10, boasts a long service life.
Displacement	2.499L	2.999L	2.499L	China VIb / Euro V / Euro VI (Customized)
Maximum power	118 kW (161 hp) at 3,600 rpm	110 kW (150 hp) at 3,400 rpm	118 kW (161 hp) at 3,600 rpm	The high‑power version delivers robust performance, while the heavy‑load version boasts ample torque.
Maximum torque	435 N·m at 1500–2200 rpm	380 N·m at 1600–2400 rpm	435 N·m at 1500–2200 rpm	Low RPM with high torque for effortless start‑up and hill climbing.
Gearbox	Isuzu MYY-6Z (6-speed manual)	Isuzu MYY-6S (6-speed manual)	Isuzu MYY-6Z (6-speed manual)	All-aluminum housing, full synchronizer, 98% transmission efficiency.
Rear axle ratio	5.571 (standard); optional 4.33/4.875	5.375 (standard); optional 4.875/6.142	5.571 (standard); optional 4.33/4.875	Adapts to various operating conditions in high‑speed, plain, and mountainous terrains.
Curb weight	2565kg	3410kg	2500kg	Lightweight design, stronger load capacity.
Total mass	4490kg	8600kg	4495kg	Compliant payload, tailored to meet the regulations of different markets.
Rated load	1535kg	4995kg	1600kg	Double-row for passenger and cargo transport, single-row for heavy loads with high efficiency.
Fuel tank capacity	84L (optional 150L)	84L (optional 150L)	84L (optional 150L)	Combined fuel consumption: 9–11 L/100 km; range: 1,000 km+
Tire specifications	7.00R16LT 8PR	7.50R16LT 14PR	7.00R16LT 8PR	Heavy-duty / wear‑resistant / fuel‑efficient tires available.
Minimum ground clearance	190mm	200mm	190mm	Good off-road performance in urban, rural, and unpaved areas.
Braking System	Front disc, rear drum + ABS + EBD	Front disc, rear drum + ABS + EBD; optional air brake / air‑cut brake.	Front disc, rear drum + ABS + EBD	Overloaded braking is safer.
Hanging	Front 2, Rear 3+2 steel leaf springs	Front 6, Rear 6+6 Leaf Springs	Front 2, Rear 3+2 steel leaf springs	800×213mm high‑strength steel frame, with a 47% increase in load capacity.

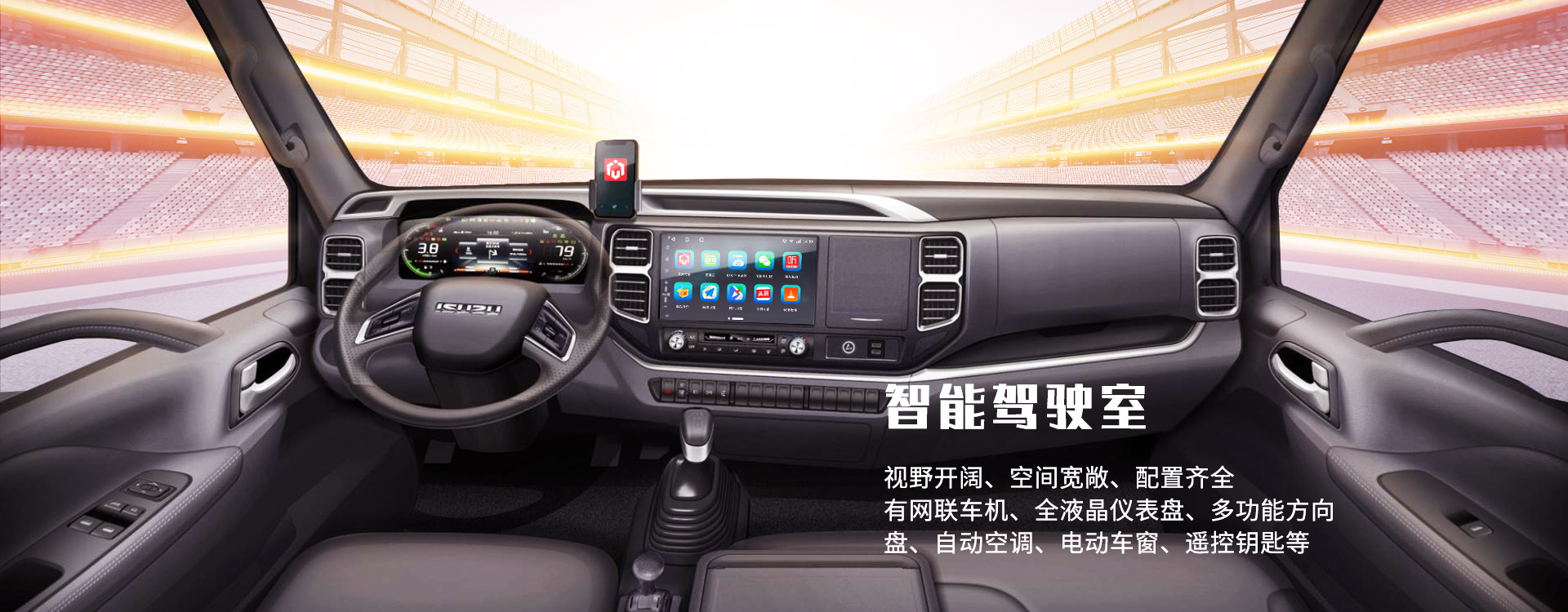

Cab	Double-row 5-seater, 1995mm wide.	Single row, 3 seats, width 1995mm	Single row, 3 seats, width 1995mm	Standard features include dual-zone automatic climate control, power windows, central locking, and a rearview camera; optional features include a multi-function steering wheel and a large central touchscreen.
