100P

Total weight: 3.66–4.495 tons More environmentally friendly: Qingling’s China VI vehicles deliver low emissions and fuel consumption throughout their entire lifecycle, while simultaneously enhancing overall vehicle performance—resulting in lower noise levels, reduced vibration, and a quieter, more comfortable driving experience. More economical (fuel‑efficient and urea‑saving): With lower fuel consumption, these vehicles offer fuel savings of over 10%–15% compared to domestically produced trucks with the same payload capacity; urea injection is precisely calibrated to reduce user costs and simplify modifications for customers; and they boast high reliability with low maintenance expenses. Greater fuel compatibility: Fully accounting for China’s diverse fuel quality and users’ operating conditions, these vehicles are developed with optimized matching, significantly improving their adaptability to various fuel types—and enabling Qingling’s China VI models to “eat rough” without issue. Higher cost performance: While prices for comparable China VI models in China have risen by 10%–20% or more compared to China V models, Qingling’s price increase has been only a modest 3%–4%.

Product Inquiry Contact Us

Product Introduction

Project	Single-row standard version (4×2)	Double-row standard version (4×2)	Single-row long-axle version (4×2)	General / Foreign Trade Configuration
Brand and Model	Qingling Isuzu 100P Light Truck	Qingling Isuzu 100P Light Truck	Qingling Isuzu 100P Light Truck	Blue plate / Yellow plate; Diesel; Rear-wheel drive; Flatbed / Box van / Stake bed / Refrigerated
Announced Model	QL1040A6HA	QL1040A6HW	QL1040A6HC	Exports to Southeast Asia / Africa / the Middle East / South America
Drive Type	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Front-wheel drive, rear-wheel drive (4×2)	Rear single wheel / Rear dual wheels available
Wheelbase	3360mm	3360mm	3815mm	Short axis is flexible; long axis is heavy‑duty.
Vehicle overall dimensions (length × width × height)	5995×1880×2320mm	5995×1880×2320mm	6495×1880×2320mm	Blue Plate Compliance (≤6m)
Cargo container dimensions	4250×1850×380mm	3240×1850×380mm	4750×1850×380mm	Optional cargo box, gantry frame, tarpaulin, or sealed container.
Engine Model	4KH1CN5LS (3.0L) / 4KB1-TCG60 (2.5L)	Same as left.	Same as left.	Isuzu’s classic model, the B10, boasts a long service life.
Displacement	2.999L / 2.499L	Same as left.	Same as left.	China V / China VIb / Euro V / Euro VI (Customized)
Maximum Power	72 kW (98 hp) at 3,400 rpm / 96 kW (131 hp) at 3,600 rpm	Same as left.	Same as left.	The 4KB1 version boasts even more powerful performance.
Maximum torque	220 N·m at 1700 rpm / 360 N·m at 1600–2600 rpm	Same as left.	Same as left.	Low RPM, high torque—powerful heavy-load starts.
Gearbox	MSB-5MT (5-speed manual)	MSB-5MT	MSB-5MT	Transmission efficiency: 98%, low maintenance costs.
Curb weight	2550kg	2650kg	2700kg
Total mass	4495kg	4495kg	4495kg
Rated load	1620–1800 kg	1500–1650 kg	1700–1850 kg	Compliant payload; blue‑plate C1 vehicles are permitted to drive.
Fuel tank capacity	76L (optional 100L)	76L	76L	Combined fuel consumption: 8–9 L/100 km; range: 900 km+
Tire specifications	7.00R16 / 7.50R16	Same as left.	Same as left.	Heavy-duty / Wear‑resistant optional
Minimum ground clearance	180mm	180mm	180mm	Good road passability on urban/rural roads.
Braking System	Front disc, rear drum + ABS + EBD	Same as left.	Same as left.	Optional air brake / air‑cut brake (heavy‑duty version)
Hanging	Front leaf spring, rear multi-leaf spring	Same as left.	Same as left.	Heavy-duty and highly durable.

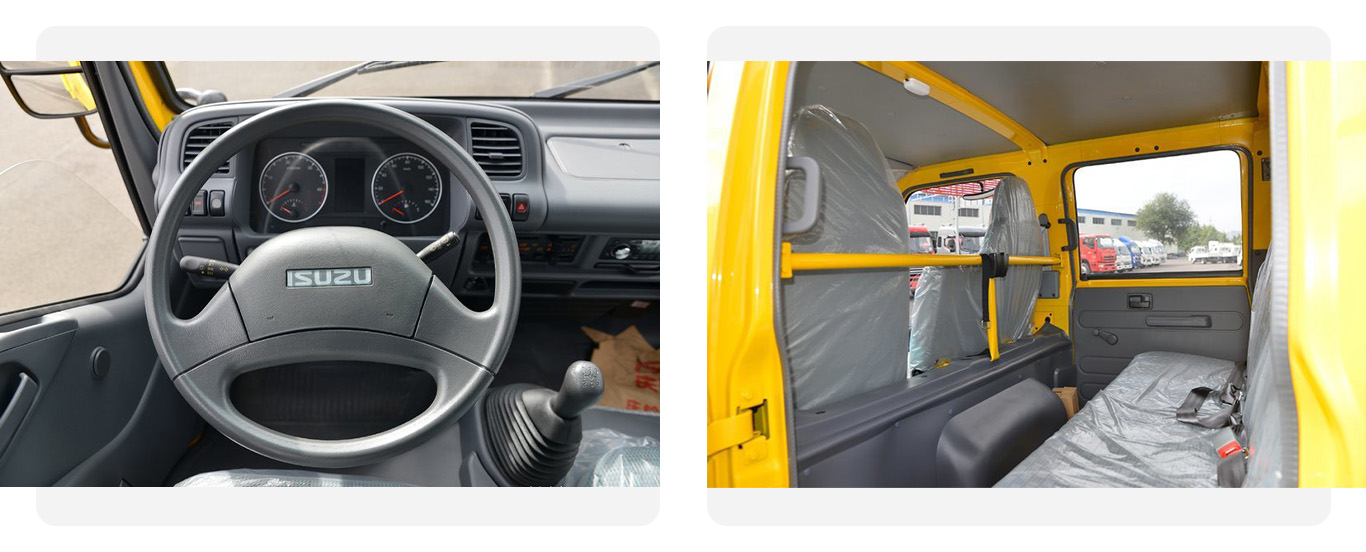

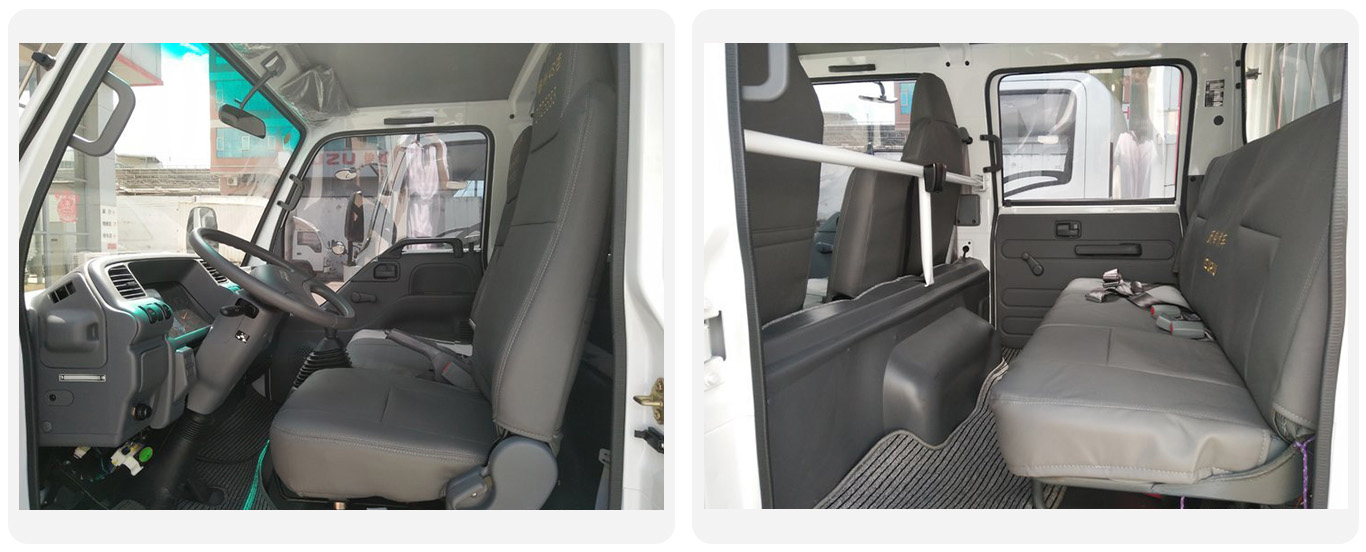

Cab	Single row, 2 seats	Double-row 5-seater	Single row, 2 seats	Standard features include hot and cold air conditioning, a radio, and USB.
