Lingka 2.5L

Total Mass: 4.49 tons Built upon Qiling’s robust systems for technology, quality, supply, and manufacturing—adhering to the same design standards, quality benchmarks, supply chain, and production lines—the vehicle is meticulously crafted to meet China’s unique geographical conditions and operational scenarios, delivering exceptional value and performance tailored specifically for Chinese users. Through forward‑development, the vehicle boasts an outstanding sense of cohesion between the complete vehicle and its chassis. With an 80% in-house component self‑manufacturing rate, 100% in‑house production of core components, and a relentless pursuit of 100% independently designed vehicles, the result is superior fitment and an even stronger overall integration. A pyramid‑shaped quality assurance framework provides all‑round, multi‑dimensional protection for vehicle quality. Qiling’s mature, proprietary commercial vehicle quality assurance system is rooted in real-world user scenarios, embodying a pragmatic and reliable approach to vehicle manufacturing. From structural and performance design to scenario‑specific engineering, from durability simulations and bench testing to road trials and extreme‑condition testing—and from individual components and assemblies through to the complete vehicle—rigorous, end‑to‑end process control ensures top‑notch vehicle quality from every angle. Qiling sets the benchmark for high‑end commercial vehicle quality. The Qiling Lingka continues to uphold Qiling’s renowned reputation for high‑end commercial vehicles, delivering exceptional qualities such as reliability, durability, fuel efficiency, and high performance.

Product Inquiry Contact Us

Product Introduction

Project	Single-row narrow-body standard version (4×2, blue license plate)	Single-row, heavy-duty, wide-body version (4×2, blue license plate)	Double-row standard version (4×2, blue license plate)	General / Customized for Foreign Trade
Brand and Model	Qingling Isuzu Lingka 2.5L	Qingling Isuzu Lingka 2.5L	Qingling Isuzu Lingka 2.5L	Diesel; Front-engine, rear-wheel drive; Flatbed / Box van / Cargo grille / Refrigerated / Special-purpose vehicle; China VIb / Euro V / Euro VI customization
Announced Model	QL1043NBHA / QL5043XXYNBHA	QL1070MEHA	QL1043NBHAY	Exports to Southeast Asia / the Middle East / Africa / South America / Eastern Europe; right-hand drive available.
Drive Type	4×2 Front‑wheel drive, rear‑wheel drive	4×2 Front‑wheel drive, rear‑wheel drive	4×2 Front‑wheel drive, rear‑wheel drive	Available with either a single rear wheel or dual rear wheels, with a total mass of ≤4,495 kg (compliant with blue license plate regulations).
Wheelbase	3360 mm (standard) / 2800 mm (short wheelbase)	3365mm	3360mm	Small turning radius for short axles; standard axles balance cargo capacity.
Vehicle overall dimensions (length × width × height)	5995×2100×2300mm	5995×2300×2400mm	5995×2100×2300mm	Total length ≤ 6 m, narrow-body 1695 mm / wide-body 1995 mm cab
Cargo container dimensions (length × width × height)	4200×1850×1810mm (van type, approximately 14 cubic meters)	4130×2100×400mm (side panels)	3200×1850×400mm (side panels)	Optional cargo box, tarpaulin, sealed compartment, and refrigeration unit; volume tailored for express delivery / department stores / fresh produce / construction materials.

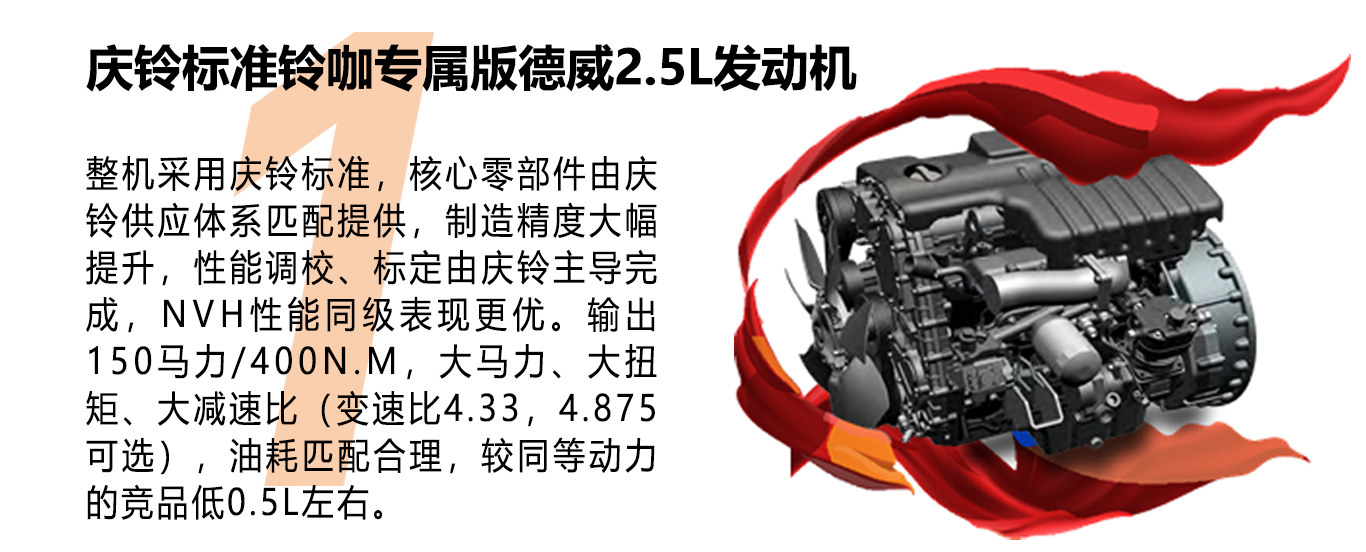

Engine Model	Yunnei DeWe D25TCIF1 (Qingling Calibration Exclusive Version); optional Isuzu 4KB1-TCG60 (2.499L)	Yunnei DeWei D25TCIF1	Yunnei DeWei D25TCIF1	4-cylinder inline turbo, China VI compliant; Euro V/Euro VI emission packages available for customization.
Displacement	2.5L (D25) / 2.499L (4KB1)	2.5L	2.5L	Torque is increased by approximately 15% compared to the 2.0L, making heavy loads and uphill climbs feel more effortless.
Maximum Power	110 kW (150 hp) at 3,600 rpm (D25); 96 kW (131 hp) at 3,600 rpm (4KB1)	110 kW (150 hp) at 3,600 rpm	110 kW (150 hp) at 3,600 rpm	Low RPM, high torque for fuel efficiency in urban and suburban driving conditions.
Maximum torque	400 N·m at 1400–2400 rpm (D25); 320 N·m (4KB1)	400 N·m at 1400–2400 rpm	400 N·m at 1400–2400 rpm	Starts and stops frequently with ease, and tackles mountain slopes with plenty of power.
Gearbox	Wanliyang WLY6G40 6-speed manual (all-aluminum housing); optional Isuzu MSB 5-speed.	Wanliyang 6-speed manual (standard air-assisted)	Wanliyang 6-speed manual	Smooth gear shifting, high transmission efficiency, and low maintenance costs.
Rear axle ratio	4.875 (standard); optional 5.375/6.142	5.375 (standard configuration)	4.875	Choose a lower gear ratio for highways in flat areas; select a higher gear ratio for heavy loads in mountainous regions.
Curb weight	2650kg	2800kg	2700kg	Lightweight design for compliant, high‑capacity loading.
Total mass	4495kg	4495kg	4495kg	Rated payload: 1.7–1.9 tons; can be driven with a blue C1 license.
Fuel tank capacity	80L (standard); optional 100L/120L	100L	80L	Combined fuel consumption: 9–10 L/100 km; with a 100L fuel tank, the range exceeds 1,000 km.
Tire specifications	7.00R16LT 8PR Heavy-Duty Tubeless Tire	7.50R16LT 10PR	7.00R16LT 8PR	Wear‑resistant and durable, ideal for mixed urban and rural road conditions.
Braking System	Front disc brakes, rear drum brakes + ABS + EBD; optional air brake.	Front disc, rear drum + ABS + EBD, air brake / air‑cut brake as standard.	Front disc, rear drum + ABS + EBD	More stable heavy-load braking.

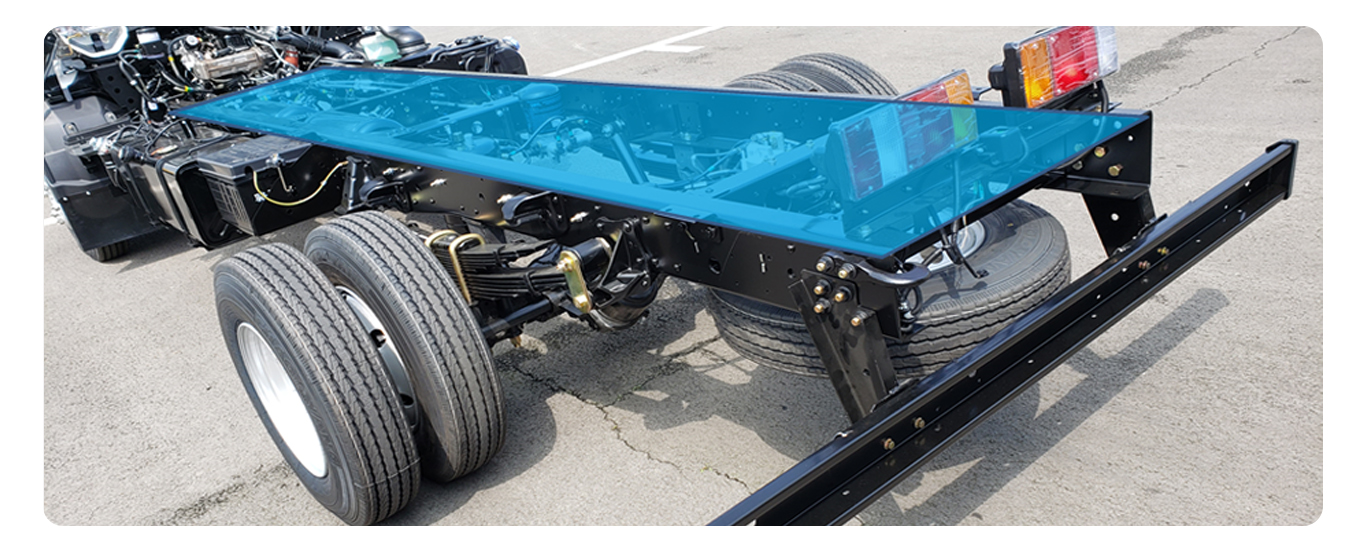

Hanging	3 leaf springs in the front, and 3+2 leaf springs in the rear.	Front 4, Rear 6+6 Leaf Springs	3 leaf springs in the front, and 3+2 leaf springs in the rear.	Balancing load capacity and comfort, the P Series features a proven chassis.

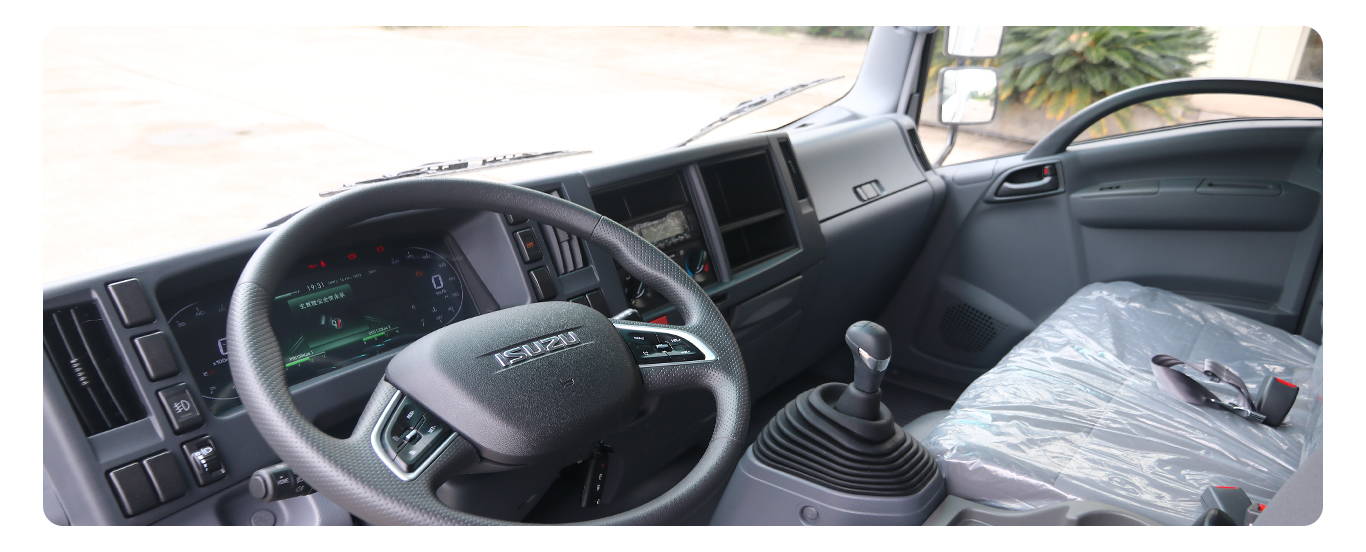

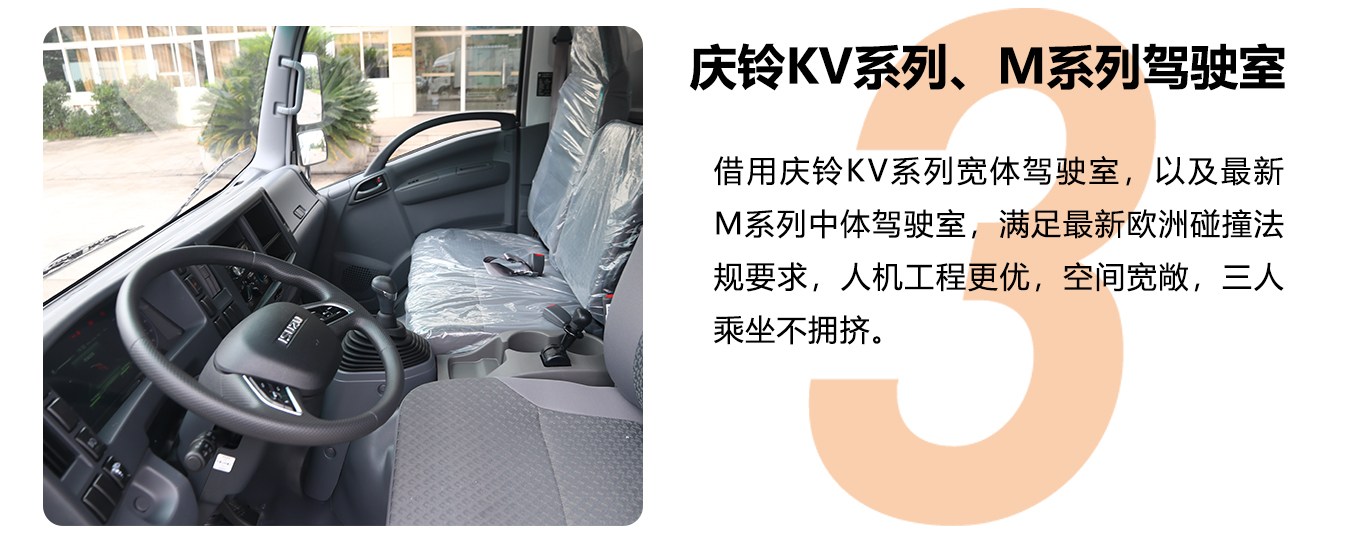

Cab	Single row, 3 seats	Single row, 3 seats	Double-row 5-seater	Standard features include dual-zone automatic climate control, power windows, and central locking; optional features include a rearview camera, a large display screen, and a multi-function steering wheel.
